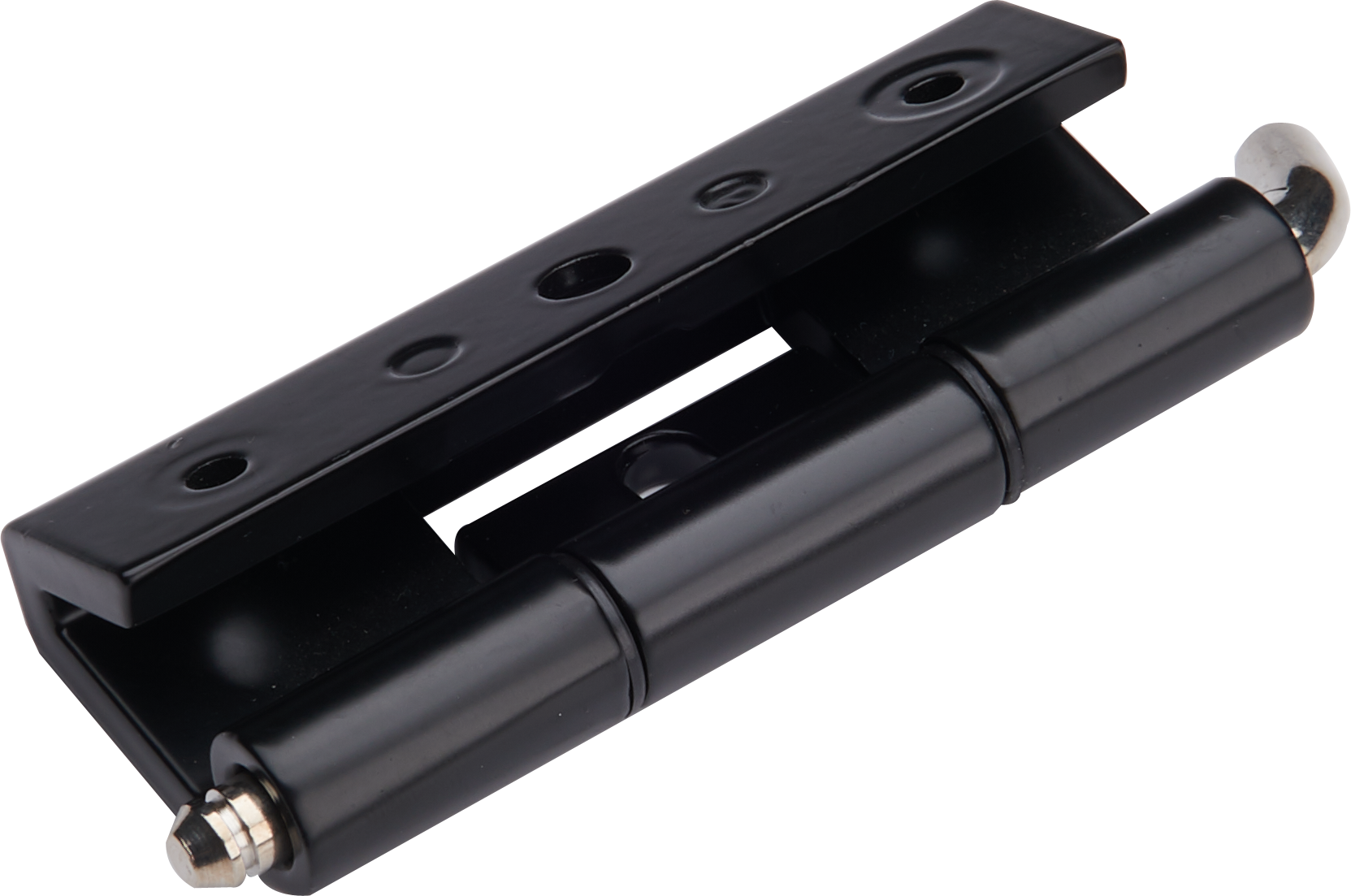

CL210
Material: zinc alloy hinge, carbon steel pin, PA gasket cover.?
Surface treatment: spray painted black.?

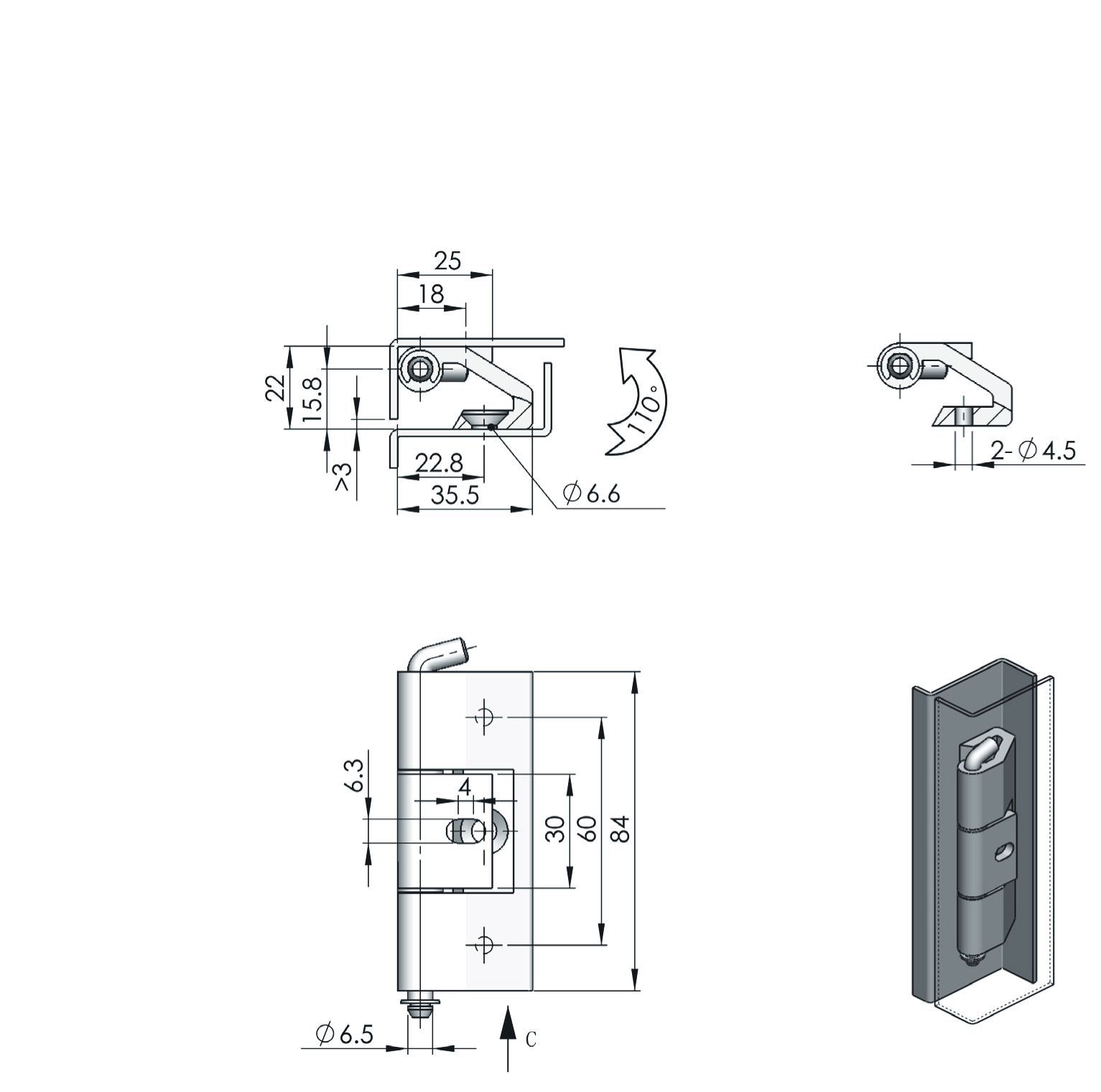

Structure description: the opening angle is 110 degrees.?
Performance parameters: maximum static load.?
Radial load: 720N.?
Axial load: 830N
